PVC Ball Valve Connectors for Irrigation in Kenya

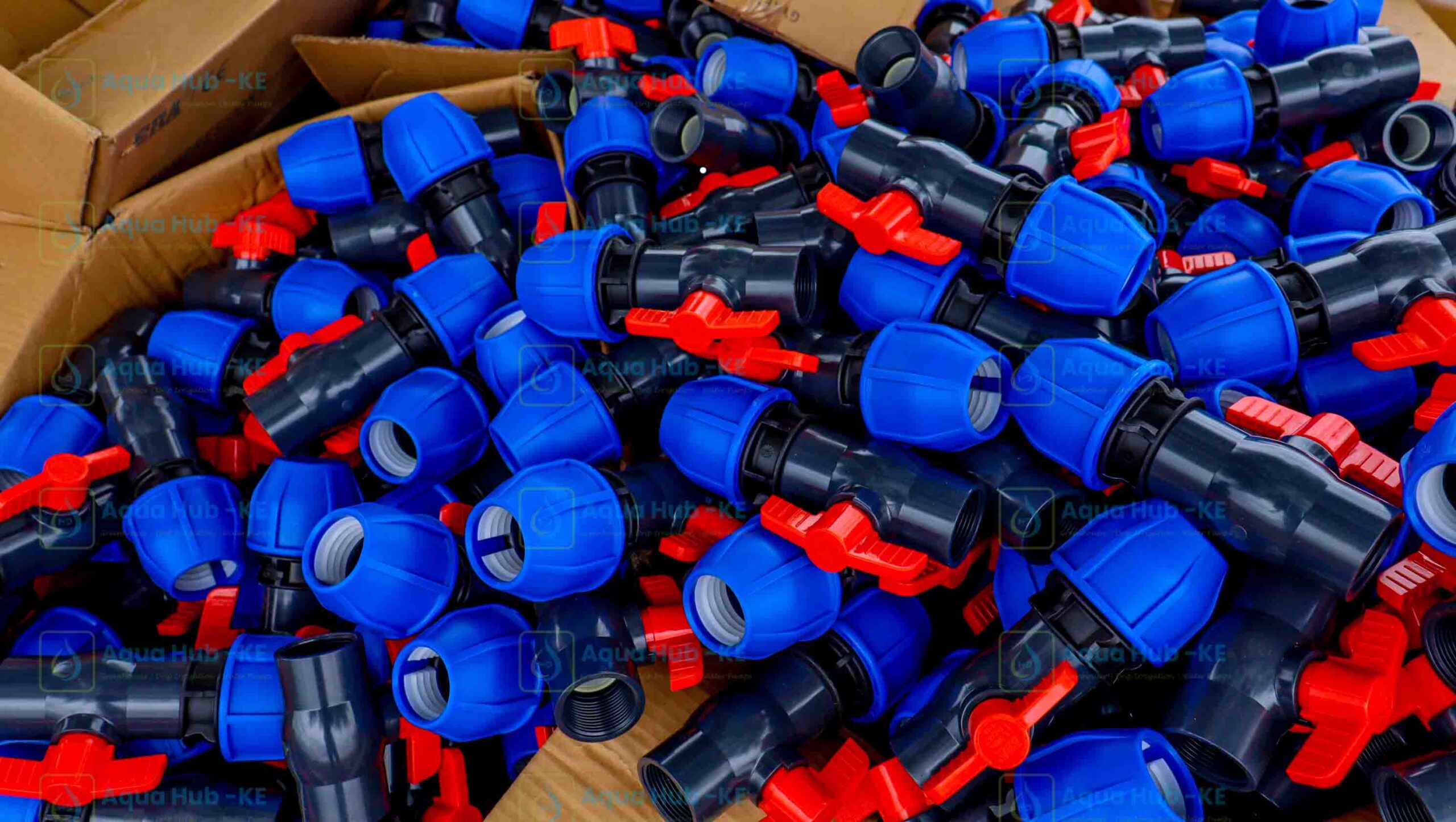

We have PVC threaded and non-threaded ball valve connectors available at sizes of ½”, ¾”, 1”, 1½”, 2”, 2½” and 3″.
Call 0790719020
Quick Takeaways
- Ball valves use a quarter-turn mechanism for fast shut-off.
- PVC ball valves are affordable and non-corrosive, thus ideal for irrigation connections.
- PVC ball valves cost between KES 300 to KES 3,000 depending on size.
- Poor installation is the top cause of valve failure.
- A good valve can last 5–15 years depending on material and pressure.
- Ball Valve connectors are available at affordable rates in Aqua Hub Kenya.
PVC Ball Valve Price in Kenya
KES 300 – KES 3,000.
What Is a Ball Valve Connector?
A ball valve is a quarter-turn valve that controls water flow using a rotating ball with a hole through its centre. When the handle is parallel to the pipe, water flows. When turned 90 degrees, it shuts off completely.
Uses of PVC Ball Valve Connectors
- Drip irrigation control
- Tank outlet regulation
- Mainline shut-off
- Pump isolation

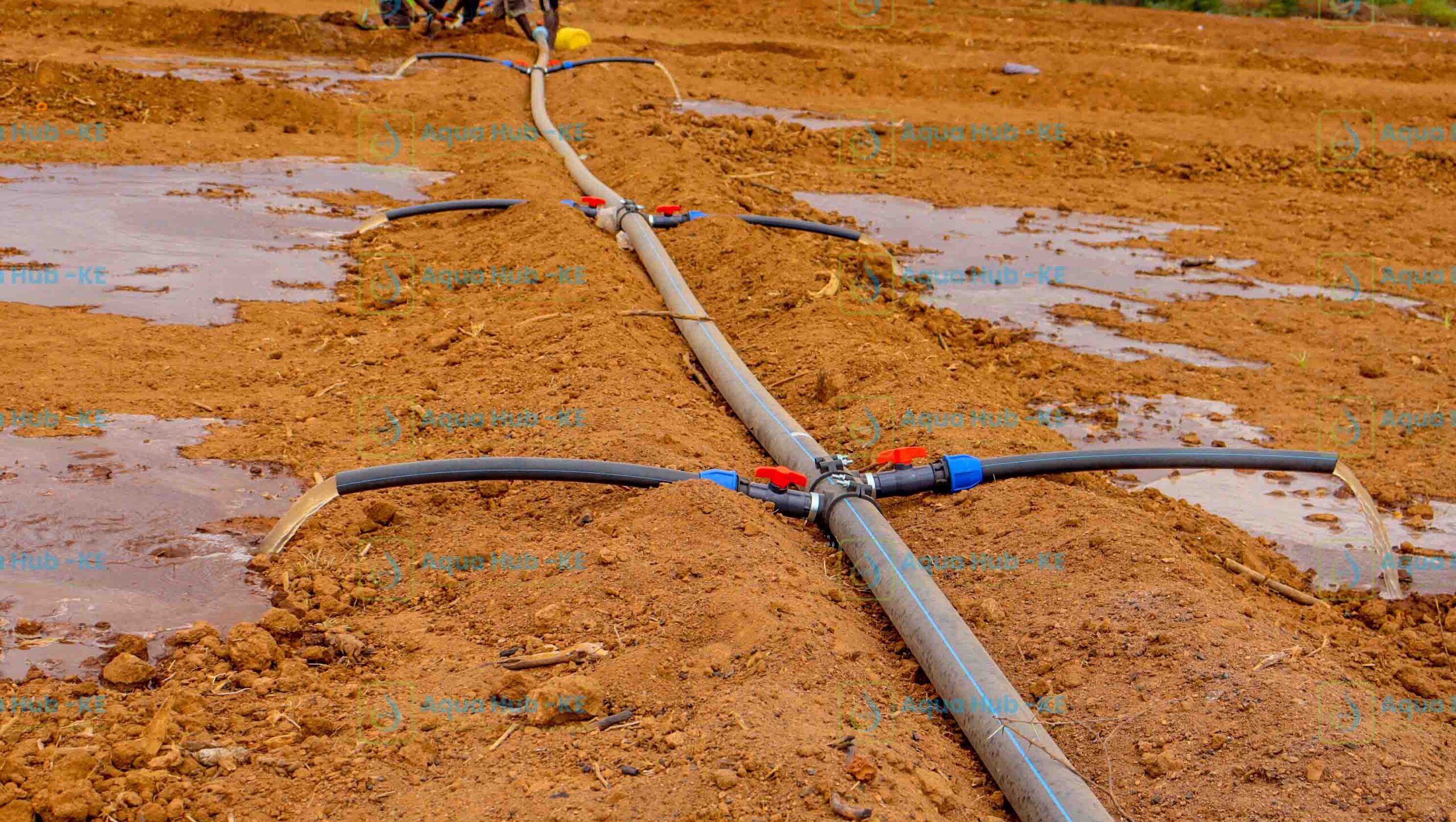

PVC ball valves used in irrigation water flow control
Compared to gate valves, ball valves provide faster shut off and tighter sealing.
How PVC Ball Valves Work
The principle is straightforward. Inside the valve body sits a polished ball with a hole (called a bore). Turning the handle rotates the ball.
- Open position – hole aligns with pipe
- Closed position – solid side blocks flow
This is why people refer to them as quarter turn irrigation valves. The simplicity reduces wear and makes them reliable in dusty farm environments.
Roles of Ball Valves in Irrigation Systems
- Shut off water to specific drip zones
- Control tank overflow
- Isolate a damaged sprinkler line
- Prevent backflow during repairs
PVC ball valves are preferable because they are resistant to corrosion when used for chemical fertigation.
Types of Ball Valves in Kenya
1. PVC Threaded Ball Valve
PVC threaded ball valve is designed from schedule 40 with female threads on both ends. Connects to male threaded nipple or adapter and works as the main shut off for a raised bed.
Ideal for low to medium pressure drip systems.
2. PVC Slip Ball Valve
Type of PVC ball valve designed for slip (socket) connection of PVC pipes. It is installed using PVC glue sealant, creating a permanent strong connection.
3. Union Ball Valve
Schedule 80 PVC ball valve designed for robust flow control. Superior resistance to pressure and mechanical damage compared to standard schedule 40 PVC fittings.
Allows easy removal without cutting pipe. Excellent for large-scale irrigation maintenance.
Ball Valve Material: Which Is Best?
PVC threaded ball valves are commonly used for irrigation water connection due to their low cost and compatibility with most pipes.
How Much Is a Ball Valve in Kenya?
- ½ inch PVC ball valve – KES 250–600
- 1 inch PVC ball valve – KES 600–1,200
How Should a PVC Ball Valve Be Installed?
PVC threaded Ball Valves
Follow the steps below:
- Wipe the male threaded part of the nipple or pipe you are connecting to.
- Apply thread tape around the threads of the pipe.
- Connect the valve: Screw the ball valve onto the male threads using your hands.
- Tighten the valve using a pipe wrench. Do not overtighten, as it can damage the valve.

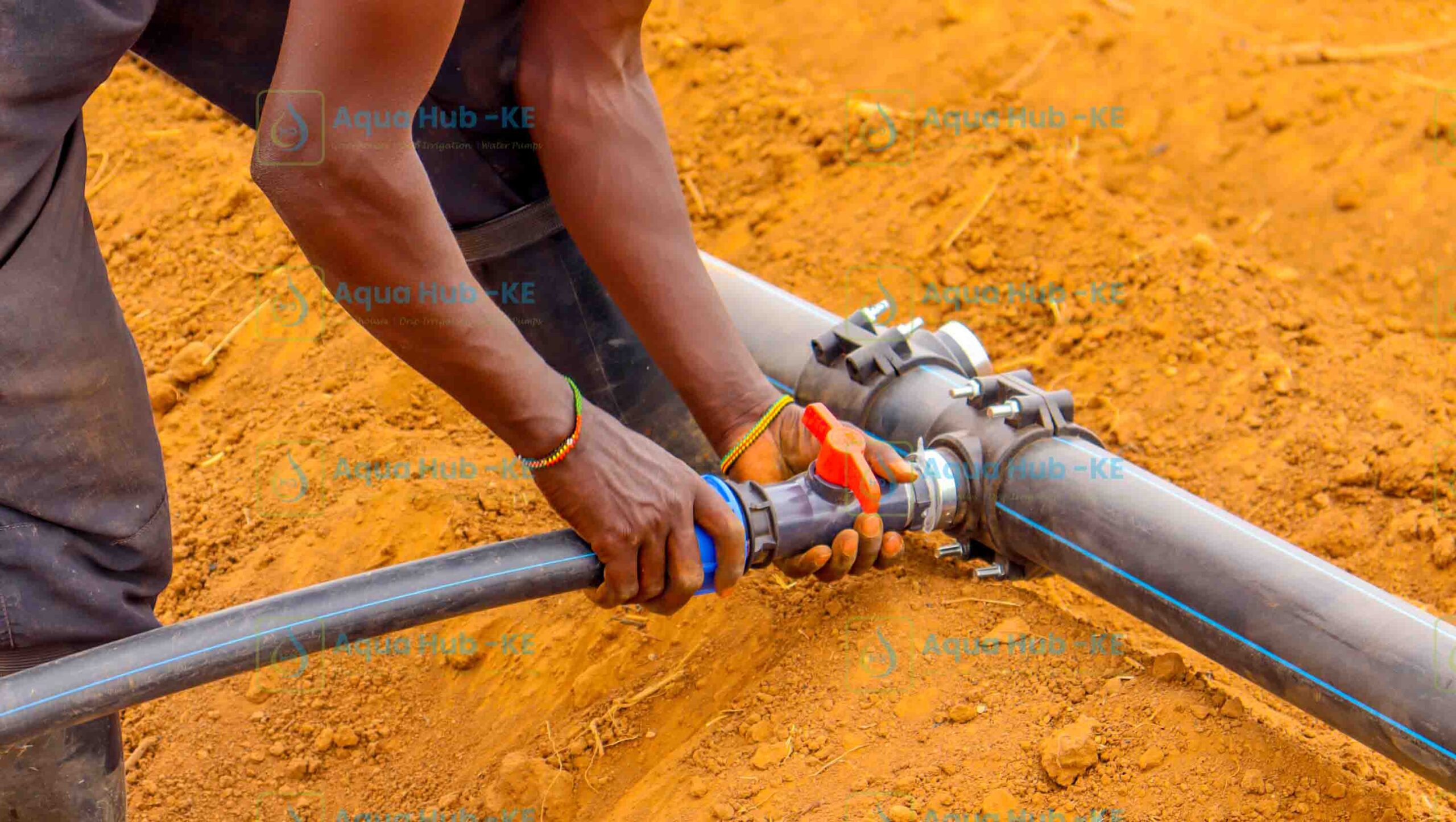

PVC Threaded ball valve connector installation
Tips for Proper Installation of PVC threaded Ball Valves
- Install with handle accessible
- Avoid overtightening threaded connections
- Use PTFE tape on threads
- Ensure pipe alignment (no stress bending)
How to Install PVC Slip Ball Valve
- Prepare the pipe: Cut the PVC pipe and remove burrs from the edge. Clean the outside of the pipe and inside of valve socket with a rag.
- Apply PVC primer: apply PVC primer to the outside of the pipe and inside the valve socket.
- Apply PVC glue Solvent: use a thin even layer of solvent on the primed pipe surface.
- Join the pipe: insert the pipe into the valve socket. Hold for 30 seconds for the glue to harden.
Advantages of PVC threaded Ball Valve
- Easy replacement: Threaded connection allows you to replace the valve or components without need to cut the pipe.
- Quarter-Turn Operation: Go from full flow to fully closed with a simple 90-degree turn of the handle.
- Corrosion Resistant: the plastic PVC body is resistant to rust and chemical corrosion making it reliable.
- Versatile application: suitable for irrigation systems, plumbing connections and long municipal water connections.
How to Use Ball Valve Properly
Using a ball valve is simple:
- Turn handle parallel to pipe to open
- Turn perpendicular to close
- Do not force the handle if stuck. That usually indicates debris or internal damage.
To prevent water hammer:
- Close valves slowly
- Avoid sudden shut-off under high pressure
Common Reasons why Ball Valves fail
- Debris stuck inside
- Worn internal seats
- Scratched ball surface
- Improper installation
To solve these common issues, these tips can help.
- Remove and flush
- Replace worn seals
- Install upstream filter
How Long Do Ball Valves Last?
PVC ball valve connectors last for at least 5 years. Brass and stainless-steel ball valves can last longer due to their non-corrosive nature.
Frequently Asked Questions
1. How much is a PVC ball valve in Kenya?
KES 300 to KES 3,000 for sizes from ½ to 6 inch.
2. How do I fix a ball valve not shutting off water?
Check for debris, worn seats or internal scratches. Replace it if necessary.
3. What are PVC ball valves used for?
To shut off, open or regulate flow of water in pipe connections.
4. How much pressure can a PVC ball valve hold?
Up to 150 PSI
5. How long will a PVC ball valve last?
5 – 15 years.
Replace when it starts leaking or gets damaged.
6. Can a ball valve be installed vertically?
Yes, as long as pipe stress is avoided.
7. What size valve do I need?
Match valve diameter to pipe size for proper flow.
8. How do I size a ball valve?
Consider the flow rate of the system and diameter of the connection pipes.
9. Why is my ball valve letting water through when closed?
There could be an issue with the valve seal.
10. Where can I buy ball valves in Kenya?
Aqua Hub Kenya
