Screen irrigation filters are best for use in dripline, sprinklers and rain hose irrigation systems. We are a Kenyan brand supplier with extensive range of irrigation fittings. Our screen irrigation filters are designed for durable and high efficiency. Get a screen irrigation filter sized according to your crop water needs at around KES 800 – KES 4,000.

Call 0790719020

Takeaway Ideas

• Screen filters remove debris to prevent clogging of irrigation pipes.
• Screen irrigation filters are available at KES 900 – KES 4,000.
• Water irrigation filters are ideal for drip irrigation, sprinklers and rain hose connection.
• For high efficiency and durability, regular cleaning is essential.
• Quality Screen filters available at Aqua Hub Kenya LTD.

What is a Screen Irrigation Filter?

screen irigation filter used to filter tank water

A screen filter contains a mesh filter that does not allow sand and dirt to enter the irrigation lines.

Screen filters are common in drip irrigation system as it is crucial to prevent dripline emitters for clogging. In sprinklers, rain guns and rain hose connections it is also ideal to use a water filter.

Specifications of Screen Irrigation Filters

• Mesh Size: 120 mesh.
• Pressure recommendation: 1-8 bar.
• Body material: Polypropylene plastic.
• Flow rate: 5m³/h – 45m³/h
• Sizes available: ¾”, 1″, 1.5″, 2″, 3″

Features of Screen Irrigation Filters?

• Plastic body material – manufactured from polypropylene plastic material.
• Internal mesh – 200-micron mesh fitted inside the screen filter body.
• UV resistance – UV stabilized body material, thus are ideal for use in external conditions.

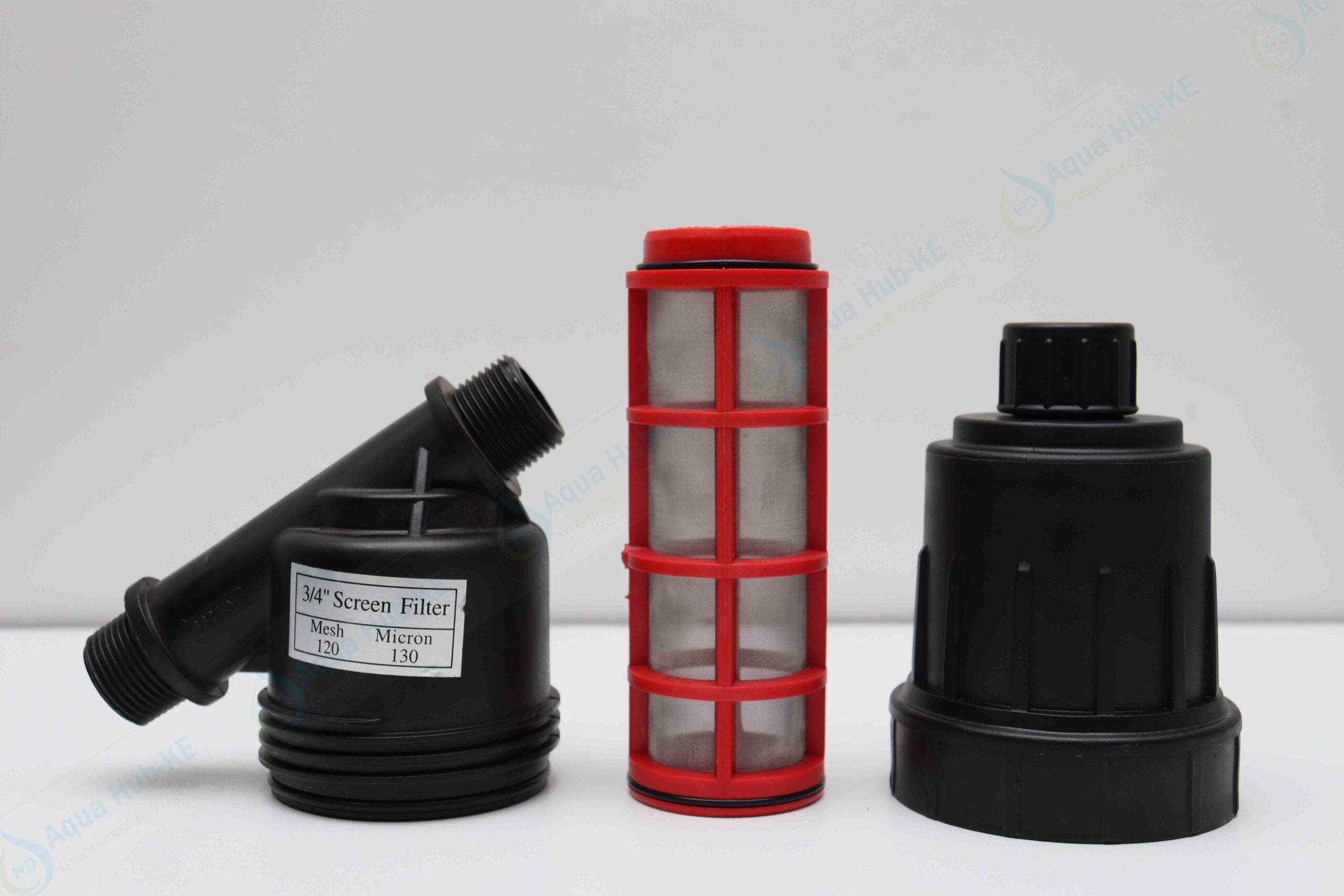

screen filter components

Importance of Screen Irrigation Filters

Most farmers use water from the river, dams, shallow wells and boreholes containing silt content for irrigation. Sand and soil content in these water sources are drawn into the irrigation lines. Without a proper water filter, they clog driplines, sprinkler nozzles or rain hose pipes and affect water distribution.

Using screen water filters removes debris and ensure uniform irrigation in your farm.

Screen vs Disc Irrigation Filters

Screen water filters are cheaper and ideal for water with low sand content. They are best for use in low pressure irrigation systems.

Disc filters, on the other hand, are ideal for water with high sand content. Handles water with high pressure and thus best for large irrigation system with a pump.

How to Install Screen Irrigation Filters

1: Identify Installation Point

Install the filter near the water source at the mainline pipe from the tank outlet.

2: Check Flow Direction

Screen irrigation water filters have arrows that indicate the direction of water flow. Incorrect installation reduces water filtration efficiency.

3: Connect the Filter

Use threaded fittings or adapters compatible with your pipe size. Fit a bypass line with valves to allow cleaning of the filter without stopping water flow during irrigation.

4: Flush Before Use

Open the ball valve to flush the filter

Tips for Choosing the Right Screen Filter

Match Filter Size to the pipe diameter

The diameter of the screen filter should match the diameter of the mainline pipe.

Consider Water Quality

The sand content of the irrigation water determines which filter to use. for low sand content, a screen filter is ideal.

Check Mesh Size

For drip irrigation, 120 mesh is commonly recommended.

Consider the durability

Check how long the filter would be expected to last before buying it.

Pressure requirement

Ensure the type of filter you consider matches with the pressure of water flow.

How to Clean a Screen Filter

1. Turn off water supply
2. Open the filter housing
3. Remove the mesh screen
4. Wash debris using clean water
5. Reassemble the filter

Signs Your Filter Needs Cleaning

• Reduced pressure
• Uneven irrigation
• Dry patches in root zones along plant lines.
• Visible dirt buildup

Screen Filters for Sale in Kenya | where are filters Sold?

Aqua Hub LTD is a one stop dealer of irrigation water filters. Buy screen filters stocked in ¾”, 1”, 1 ½” and 2” sizes at convenient prices.

Frequently Asked Questions

1. What size of screen filter should I use?

You can choose from the ¾ – 2” sizes depending on the size of irrigation system.

2. What is the use of screen filters in drip irrigation?

To remove debris and prevent clogging irrigation lines.

3. How much does a screen filter cost in Kenya?

KES 800 – KES 4,000.

4. Where should I install a screen filter in my irrigation system?

After the pump or tank connection.

5. How often to clean my screen irrigation filter?

Depends on the sand content of your water.

6. Which filter is best for drip irrigation?

If your water source has high sand content, use disc filter.

7. Which better, screen filter or disc filter?

Disc filters are highly efficient than screen filters.

8. Do screen filters reduce water pressure?

When clean they cause minimal headloss; clogged screens increase pressure drop, so monitor pressure and clean as needed.

9. Can I use a screen filter with fertigation equipment?

Yes. It is installed at the mainline section before venturi injector connection.

10. Where to Buy Screen Irrigation Filter?

Aqua Hub Kenya.
