Pop-Up Sprinklers for Lawn Irrigation in Kenya

Pop-up sprinklers are one of the most popular irrigation methods for lawns in residential, commercial, recreational, and cultivated areas in Kenya.

Aqua Hub Kenya’s pop-up sprinklers for lawn irrigation provide controlled water distribution. Additionally, they have automatic operation s that helps reduce manual watering and supports consistent lawn irrigation.

To get a pop-up sprinkler installed on your lawn today, call +254790719020 or email info@aquahubkenya.co.ke.

What are Pop-Up Sprinklers?

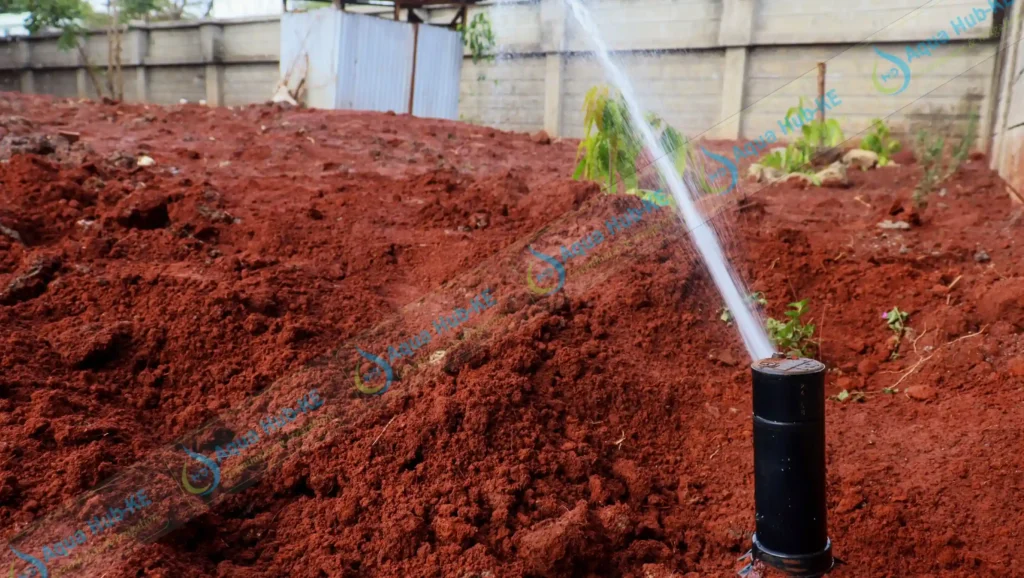

Pop-up sprinklers are a type of sprinkler that remains below the ground when it is not operating. When water flows through the system, pressure pushes the riser above the ground and exposes the nozzle. The nozzle then distributes water across the surrounding lawn according to the selected spray pattern, radius, and irrigation requirement.

When the water supply stops, pressure drops and the spring retracts the riser back into the sprinkler body. As a result, the sprinkler stays hidden when it is not in use, which makes it easier to mow the lawn without damaging the sprinkler.

Pop-Up Sprinkler Specifications

Pop-up sprinklers are available in ½ inch, ¾ inch, and 1 inch sizes. Depending on the model, they can also have adjustable spray angles from 40° to 360°, while some models provide adjustable patterns up to a full circle.

Common specifications of the pop-up sprinklers at Aqua Hub Kenya include:

• Radius from about 4.9 to 14.0 m for PGP models
• Flow from 0.10 to 3.22 m3/hr
• Recommended pressure range of 1.7 to 4.5 bar for PGP models
• Operating pressure range of 1.4 to 7.0 bar for PGP models
• Pop-up heights that can range from 2 to 12 inches
• Hard plastic or metallic body options
• Inbuilt filters that help keep debris away from the nozzle

Because nozzle sizes vary, you can adjust spray volume and radius to suit the lawn area. Therefore, the sprinkler can be selected according to the water requirement, pressure, and coverage needed.

If you want professional recommendations on which sprinkler specifications are best for your use case, reach out to Aqua Hub Kenya through telephone on 0790719020.

Features of Lawn Pop-Up Sprinklers

Pop-up sprinklers provide automatic rising action whenever water flows through the system. In addition, gear-driven models rotate accurately while adjustable spray settings allow you to direct water toward the required section of the lawn.

The main features include:

• Pop-up action when water pressure enters the system
• Adjustable spray radius and spray direction
• Gear-driven rotation on suitable models
• A range of nozzle diameters for changing flow and coverage
• Retraction after irrigation is complete
• Mesh or screen filtration to reduce nozzle clogging
• Durable plastic or metallic construction
• Adjustable arc settings for different lawn shapes

Pop-Up Sprinkler Prices in Kenya

Pop-Up sprinkler prices vary according to size, brand, model and system complexity. The varieties available at Aqua Hub retail at:

• ½ inch – KES 2,500 to KES 3,000
• ¾ inch – KES 3,700 to KES 4,000
• 1 inch – KES 5,000 to KES 6,500

Why Use Pop-Up Sprinklers for Lawn Irrigation?

There are a number of benefits to using Pop-Up sprinklers for lawn irrigation, including:

• Pop-up sprinklers provide uniform irrigation across lawns and help reduce dry patches caused by uneven watering.
• Since the sprinkler heads remain below the ground when they are not operating, they also support easier mowing and reduce obstruction across the lawn.
• Furthermore, automatic pop-up irrigation can reduce the need for manual watering. Controllers and timers can activate the sprinkler zones according to a selected schedule, while solenoid valves open and close the water supply automatically.
• This setup can also help manage irrigation time and labour. Early morning or late afternoon operation can help reduce the effects of evaporation and wind on water distribution.

Types of Pop-Up Sprinkler Heads

Spray Head Pop-Ups

Spray head pop-ups provide wide, short-distance coverage and work well for small lawn patches. They deliver a rain-like spray pattern and can offer a lower-cost option for suitable lawn areas.

Rotary Pop-Up Sprinklers

Rotary pop-up sprinklers rotate during operation and can cover larger areas. They can suit bigger lawns, parks, commercial landscapes, and other areas where broader coverage is required.

Gear-Driven Rotor Heads

Gear-driven models use a gear drive mechanism to rotate the sprinkler and provide precise arc adjustment. As a result, they can suit irregular zones, curved garden borders, and areas that require targeted watering.

How to Choose a Lawn Pop-Up Sprinkler

The size of your lawn determines the coverage and sprinkler capacity required. Therefore, measure the lawn area before selecting the sprinkler heads and planning the installation.

Water pressure also matters because pop-up sprinkler heads operate within pressure ranges that vary according to the model and size. Check the pressure of the water source and determine whether a booster pump is necessary.

The shape of the compound matters as well. A lawn with corners, curved borders, or irregular sections may require adjustable spray patterns and gear-driven heads.

Soil type should also be considered because sandy, loamy, and clay soils retain water differently. Finally, your budget affects whether you select a manual or automated system and determines the equipment and installation scope.

If you would like professional advice from qualified experts, reach out to Aqua Hub Kenya through +254790719020.

How to Design and Install a Pop-Up Sprinkler System

There are multiple steps involved in installing a pop-up sprinkler system. These are:

1. Start by surveying and planning the lawn. Measure the area and identify the water soruce. Then, use a pressure gauge to determing the pressure available from the water supply.
2. Next, plan the sprinkler head positions and spacing. Pop-up sprinklers should provide overlapping coverage so that the lawn does not develop dry patches. Divide the lawn into zones where the sprinkler heads can operate under similar pressure and flow conditions.

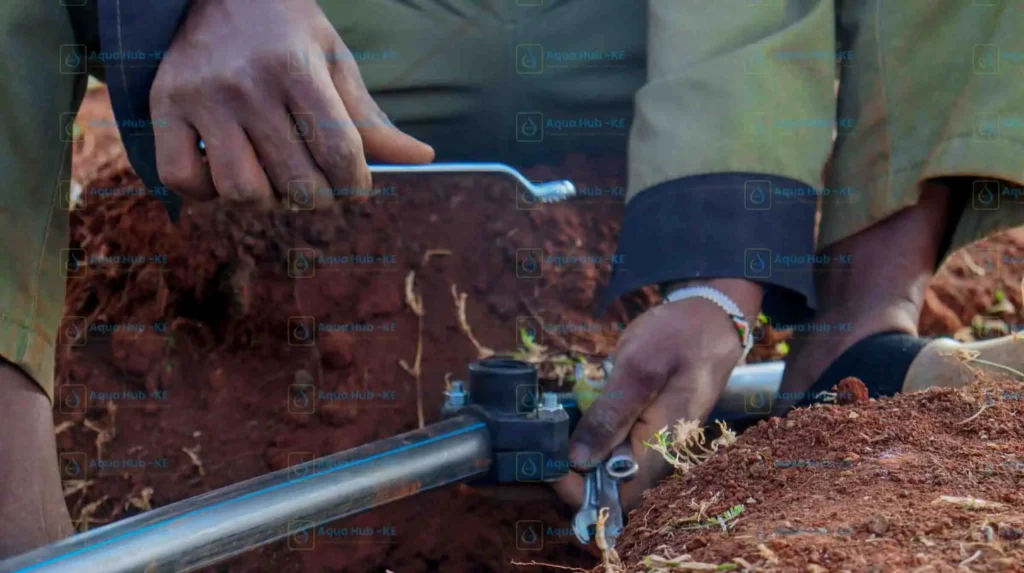

3. After planning the layout, mark the trench lines and sprinkler locations. Dig the trenches and lay the mainline and lateral pipes. HDPE pipes can be used for underground water delivery while tees, elbows, end caps, saddle clamps and other fittings are usd for additional connections.

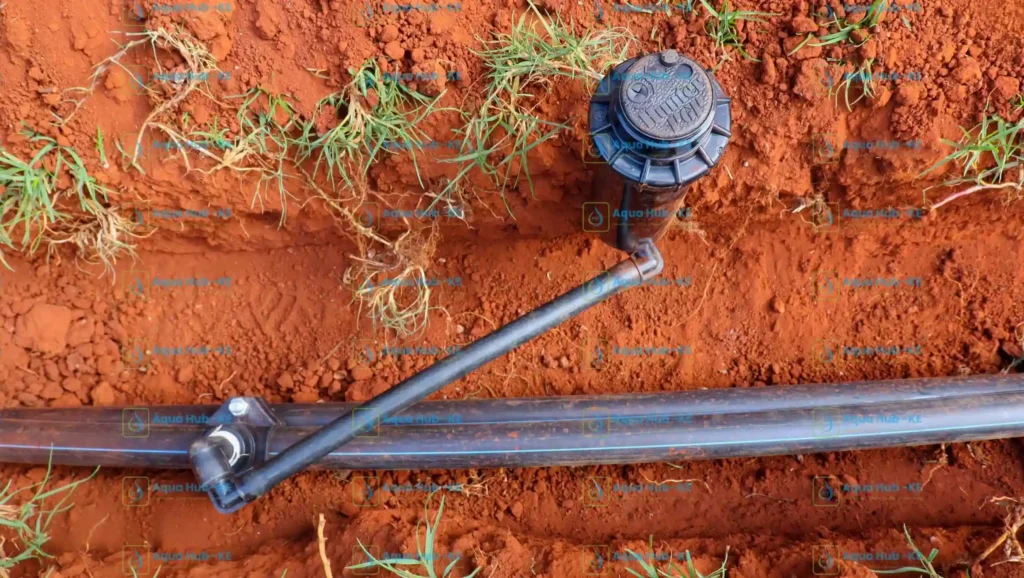

4. Connect the sprinkler bodies and risers, install the nozzles, and test the system for leaks. Then, backfill the trenches and compact the soil so that the pipes remain protected and the ground does not sink.
5. Install the controller and connect the solenoid valves. Finally, wire the valves to the controller and program the irrigation schedule according to the lawn requirements.

How to Maintain Lawn Pop-Up Sprinklers

Regular maintenance keeps the irrigation system operating properly and helps avoid wasted water. Inspect the sprinkler heads regularly and check for broken or blocked components.

Clean the filters and nozzles because debris can reduce flow or stop the pop-up action. Also, check water pressure with a pressure gauge. If pressure drops, inspect the pump and pipework for problems. If pressure becomes too high, use a suitable regulator.

Protect the sprinkler heads from mechanical damage during lawn maintenance. Ensure the heads retract properly and avoid striking them with mowing or edging equipment.

Replace worn out springs, nozzles, seals, pipes and heads when necessary

How to Replace a Faulty Pop-Up Sprinkler Head

• First, shut off the water supply to that zone
• Next, unscrew the faulty head from its base and inspect the riser, spring, seal and filter screen.
• Then, clean the components where possible or replace parts that are damaged or worn
• Finally, install a compatible replacement head with the correct inlet size and suitable radius and arc. You can then turn the water back on and test the spray pattern.

Where can I Buy Pop-Up Sprinklers in Kenya

Aqua Hub Kenya supplies the best pop-up sprinkler systems in Kenya and provides installation as well across the country.

For a commercial lawn, sports field, golf course or large compound, select the sprinkler size according to the required coverage. Additional considerations include water pressure, flow rate, lawn layout and budget.

Are you looking for high quality pop-up sprinkler systems at an affordable cost? Call 0790719020 or email info@aquahubkenya.co.ke to talk to one of our trained experts and get your quote today.
